Used Oil Centrifuge Plant with 6 MGY Capacity - Layout, Benefits, and Equipment Specifications


Table of Contents


For commercial or large-scale processing of used oil, centrifuges play a vital role in the separation process of water and sludge. This article discusses the typical layout of a used oil plant using industrial centrifuges, highlighting the benefits of centrifuges over conventional heating and settling methods.

Plant Layout

A used oil centrifuge plant layout has specific considerations that need to be addressed before the plant layout is designed and finalized.

Considerations for Used Oil Plant Layout

Several considerations influence the configuration of a commercial scale used oil processing facility. Some of the critical considerations are discussed below.

Raw Product Source(s)

Used oil processors collecting oil from automotive garages and other similar locations typically don’t carry too much sludge in the oil. On the other hand, used oil from industrial facilities mixed in with engine oil carries a higher percentage of solids that require a different separation approach.

Constituents

Straight used oil from engines has water, glycol, and engine-wear particles as contaminants. This oil is easy to clean with a centrifugal separator. Used oil sometimes carries detergents from washing activities that can cause the oil to form an emulsion with water.

Such emulsified oils are trickier to process and need chemical demulsifiers to break the emulsion.

Existing Plant/Equipment

Used oil processors that currently use heating and settling methods have settling tanks that the operator can adapt to a centrifuge-based used oil recovery process. Other equipment such as pumps, pre-strainers, etc., that are available at the existing location can be repurposed for a used oil centrifuge plant.

Heating Resources

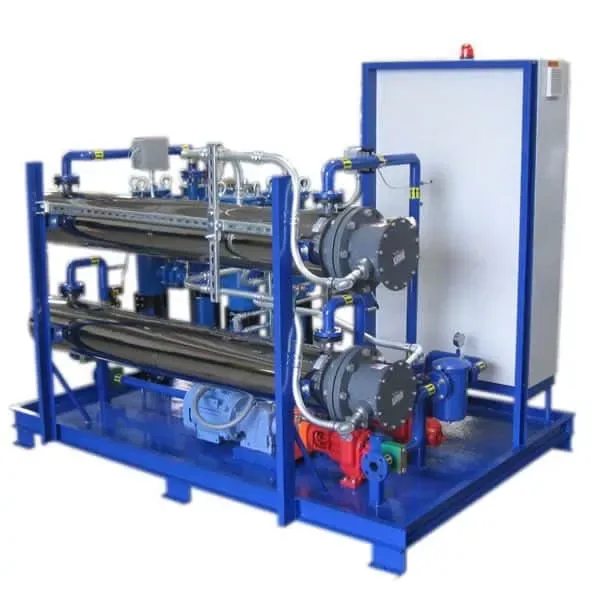

Heater Pump Filter Skid for Crude Oil
Heater Pump Filter Skid

One of the critical resources to the processing used oil through centrifuges is heat. Increasing the temperature of used oil reduces the oil’s viscosity, increasing centrifuge separation efficiency.

Therefore, tanks with heating coils or heat exchangers currently used to heat the incoming used oil are handy for a centrifuge-based used oil processing plant.

Pre-Processing

Pre-processing from a centrifuge perspective means the pre-straining of the raw used oil to separate large debris from the oil that can cause operational issues for the downstream equipment, including centrifuges, pumps, heat exchangers, etc.

Often, the pre-processing stage includes pre-heating and straining the used oil to allow the downstream centrifuge to operate at maximum efficiency.

Typical Used Oil Plant Layout

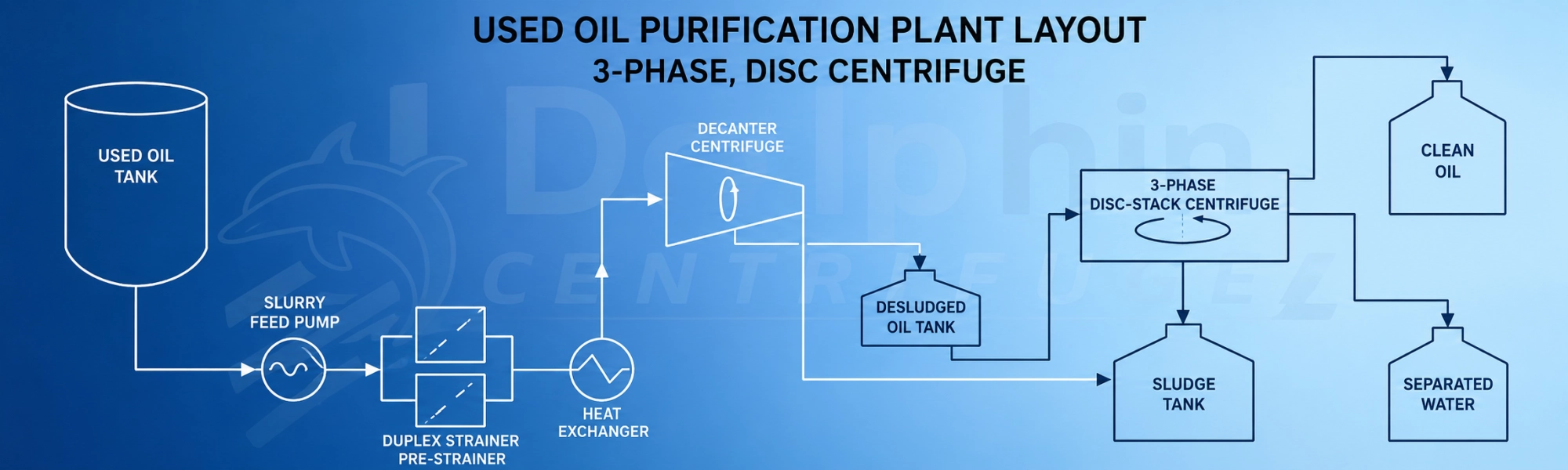

A 6MGYused oil plant using an industrial centrifuge for de-sludging and a disc-stack centrifuge for polishing the used oil has a multi-step process using a decanter and disc-stack centrifuge. The configuration is shown below through a piping and flow diagram.

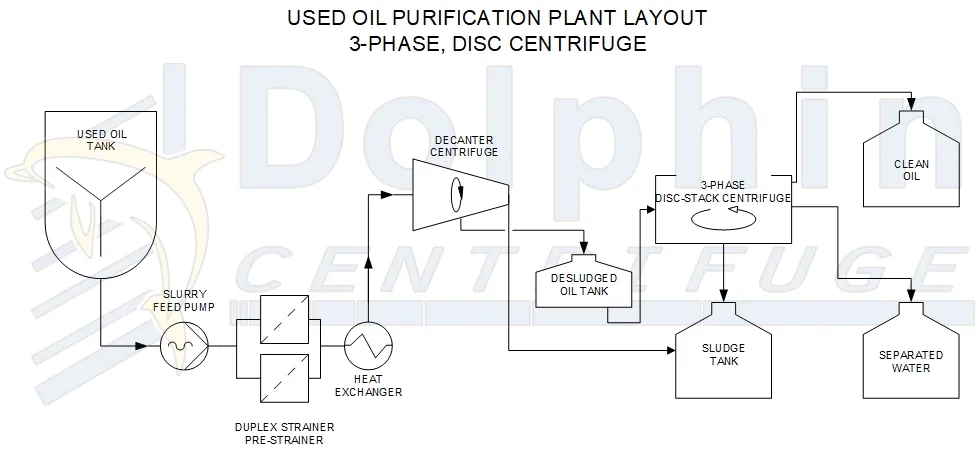

Used Oil Centrifuge Plant Layout

Six million gallons per year (6MGY) equals 25 GPM centrifuge capacity assuming 5 Days/week; 20 Hrs/Day processing. Therefore, the plant layout shows centrifuges capable of processing 25 GPM of used oil at efficient operating temperatures of around 180 F.

Plant Equipment & Function

The plant can be divided into three stations or steps: as follows.

Pre-Straining or Pre-Processing

Pre-straining is separating large solids from the used oil to prevent these solids from damaging downstream pumps and centrifuges. Used oil often contains rocks, twigs, rags, etc., potentially damaging equipment designed for smaller particles.

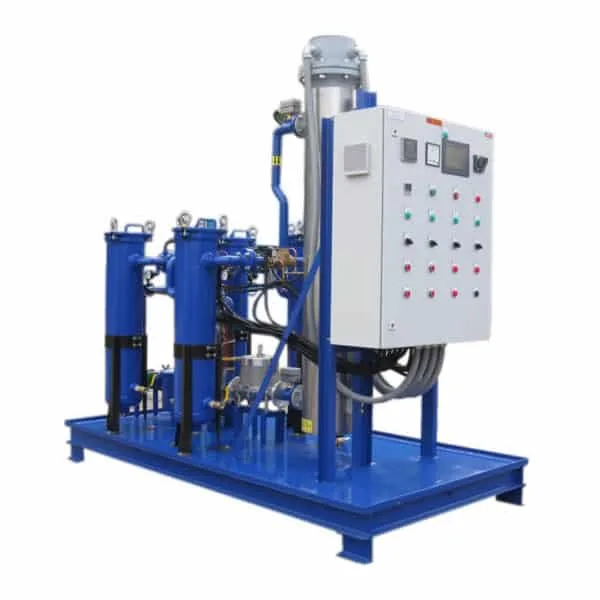

Automatic Pre-Strainer Skid
Dolphin Centrifuge's Pre-Strainer System with Heater

This step primarily consists of large mesh filter housings with ¼” or ⅜” steel mesh containers that catch these large particles. Ideally set up as duplex canisters, the operator can switch on the fly while processing.

The other aspect of pre-processing is pre-heating. Used oil centrifuges work well on oil that is heated. Pre-heating with steam or thermic fluid coils in the tank helps the oil flow through the pre-strainers and reduces the heat load on downstream heaters.

Filter housings with 1-½” ports and 36” steel mesh baskets suit the flow as mentioned above rate.

Desludging

The desludging step is where a decanter centrifuge (horizontal bowl centrifuge) separates the bulk of sludge from the used oil. The decanter centrifuge is capable of handling particles up to ¼”.

For optimum separation, the used oil should be at 130 F for the decanter to produce oil with less than 2% sludge. The actual separation efficiency of the decanter depends on the type of solids (organic matter or metal particles) and the particle size distribution.

The Alfa Laval NX-314 decanter is a heavy-duty decanter that can process up to 40 GPM of light viscosity oils. Though the actual throughput depends on the used oil composition and contamination level, a flow rate of around 25 to 30 GPM is achievable for standard used oil.

The desludging step is critical for industrial used oil with high solid sludge content. This sludge removal is essential due to the solids handling limitation of the downstream disc-stack centrifuge.

Polishing and Water Separation

The decanter centrifuge de-sludges the used oil but does not separate the water from the used oil. In this step, an Alfa Laval high-speed disc-stack centrifuge separates the water and remaining small particles from the used oil.

This centrifuge incorporates a three-phase design that can separate the water and sediment from the oil simultaneously. These disc-stack centrifuges’ inherent high centrifugal force allows them to separate small particles down to 0.5-microns and all free water.

If the used oil contains emulsions, the disc-stack centrifuge can break some of the emulsified phases by pulling out the microparticles acting as the nucleus of the emulsion.

Our article titled using a disc centrifuge to break oil emulsion delves into more details on this topic.

Our field experience makes it possible to produce 99.9% clean used oil from the disc-stack centrifuge. The separate water phase does carry some oil in the 100 to 5000 ppm range.

Benefits of Centrifugation versus Heating & Settling

The multitude of benefits of centrifuges over conventional heating and settling methods is due to the centrifuges’ centrifugal force that is several thousand times that of gravity.

In other words, heating and settling use the force of gravity (1G) to separate the oil from the water and solids. Industrial centrifuges (decanter and disc-stack) exert between 3,000 and 8,000 times the force of gravity, affecting instant separation.

The following is a list of some of the main benefits.

Small Footprint

The conventional methods (heating, filtering, and settling) rely on tanks for storage and settling. The space and footprint of such plants increases in proportion to the plant capacity.

On the other hand, Centrifuges are flow-through devices that separate quickly and efficiently using high centrifugal forces.

Therefore, used oil centrifuge systems use a fraction of the footprint of settling tanks and filter housing banks.

Fewer Tanks Needed

Following the above point, since centrifuges do not require settling, the tanks are no longer required except for storing clean used oil. This benefit of centrifuges saves considerable expenditure related to settling tanks.

Fast Processing

As mentioned above, centrifuges affect instant separation, allowing the used oil centrifuges to process large volumes of used oil in a short time. As in any business, time is money and the time saving attributable to centrifuges directly benefits the operator in terms of higher volumes leading to more profits.

Cleaner Products

Industrial centrifuges can produce 100% clean oil from water and solids. Heating and settling typically leave behind small, suspended solids in the oil that require filtration to produce sale oil.

The cleaner used oil from centrifuges brings a higher value and more revenue for the same volume processed.

Emulsion Recovery

Alfa Laval disc-stack centrifuges exert a high centrifugal force that can extract the microparticles that act as the nucleus of emulsion molecules within emulsified used oil. Removing these particles leads to a breakdown of the emulsion molecule leading to higher oil recovery and emulsion breaking.

Chemically bonded emulsions are trickier and often need a chemical neutralizing agent such as an acid or demulsifier to break the emulsion and recover the trapped oil.

Energy Efficiency

The larges cost factor in the heating and settling methodology is the cost of heating the large volumes of used oil and water to around 180 F to affect settling. If the operator desires faster settling, higher temperatures are required, leading to even more energy costs.

It is also worth noting that large amounts of heat from the heated tanks are lost to the environment that is not environmentally friendly and a direct loss to the operating revenue.

Labor Cost

Used oil centrifuges are feature fully automatic operation and therefore require minimal manual labor. The traditional heating and settling operations require manual labor to decant the separate water and sludge. Labor is also essential to clean out the settled sludge from settling tanks.

Based on the above the expenses related to labor costs add up quickly and make centrifuges attractive from this cost savings perspective.

Specifications

The overall specifications for this layout can be categorized into centrifuge equipment specifications and plant specifications.

Centrifuge Equipment Specifications

While considering the centrifuge specifications it should be noted that the rated flow capacities of centrifuges are based on light viscosity oils with water and solids. However, the actual throughput is dependent on the specific process fluid properties.

Thicker, viscous fluids tend to flow slower causing the capacity of the centrifuges to deteriorate. For example, the DMSC-042 centrifuge specified below is capable of processing 40+ GPM of #2 diesel fuel but is derated down to about 25 GPM of used oil.

Decanter Centrifuge

biomass-centrifuge-Alfa-Laval-NX314

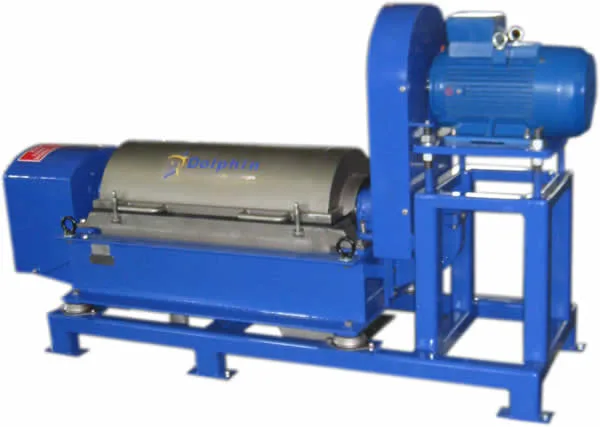

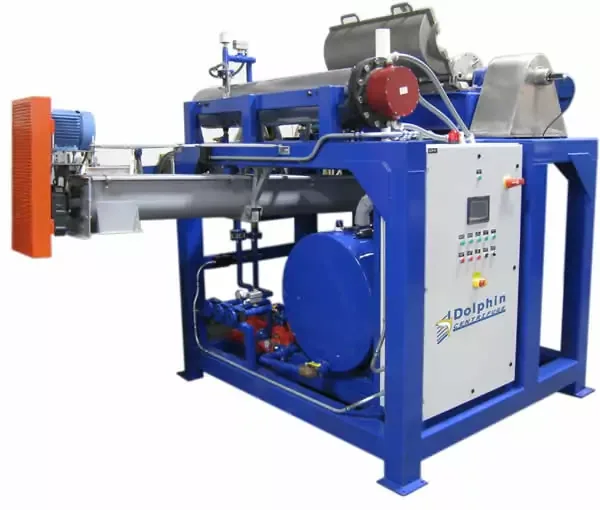

Alfa Laval NX-314 Decanter Centrifuge

The Alfa Laval NX-314 Decanter centrifuge is a medium-capacity centrifuge that can process up to 40 GPM of light viscosity oils to separate sludge. You can read more about this model decanter by clicking on the link above.

The following table lists the technical specifications of this used oil decanter centrifuge.

Decanter ModelAlfa Laval NX-314 B 31
Bowl Speed4,000 RPM
Centrifugal Force3,150 Gs
Main Motor Power15 HP
Max. Capacity60 GPM
Used Oil Desludging Capacity @ 150 F25 GPM
Weight2,500 Lbs
Dimensions (Footprint)9' x 3' x 5' (H)
Operating Voltage460 VAC - 3 Phase
Power50 Amp Circuit

Disc-Stack Centrifuge

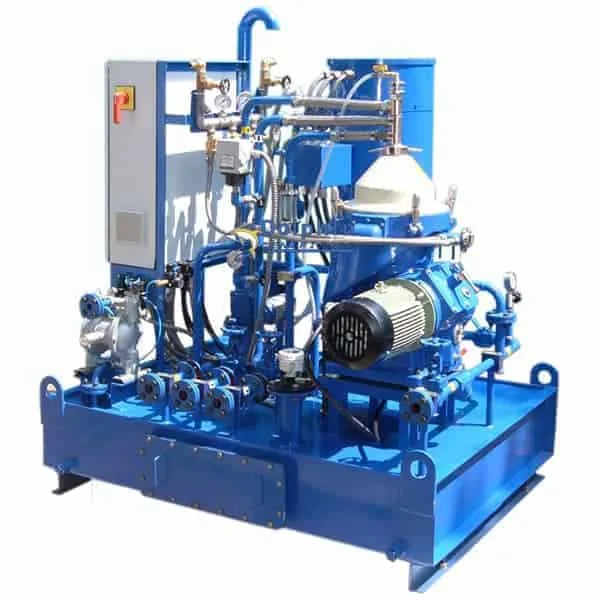

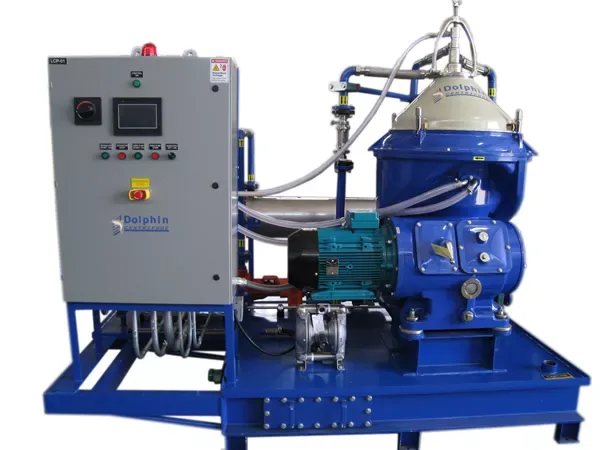

Used-Oil-Centrifuge-Alfa-Laval-MAPX204

The DMSC-042 is originally an Alfa Laval ‘Self-Cleaning’ disc-stack centrifuge that has been modified specifically for used oil purification. The centrifuge is also augmented with special elastomers to handle acid-treated used oil.

The following table lists the technical specifications of the DMSC-042 Disc Stack centrifuge.

Centrifuge ModelDMSC-042 Disc Stack Centrifuge (Modified Alfa Laval Separator)
Bowl Speed~5,000 RPM
G-Force~6,500 Gs
Main Motor Power15 HP
Max. Capacity62 GPM
Used Oil Capacity @ 180F25 GPM
Weight3,500 Lbs
Dimensions (Footprint)5' x 6' x 8' (H)
Operating Voltage460 VAC - 3 Phase
Power Required

Plant Specifications

The plant specifications refer to the specifications of facilities and equipment other than the centrifuges that are applicable specifically to used oil centrifuge plants.

Facility Size

For a 6MGY used oil plant based on centrifuges, the facility can be a fraction of the size of a similar capacity heating and settling type of setup. In this case, the entire processing plant can be accommodated within a 4,000 sqft facility, not including the incoming oil storage tanks.

We recommend that such a facility be climate controlled and the equipment protected from the elements (rain/snow/wind, etc.)

Auxiliary Equipment

In addition to the centrifuges, some auxiliary equipment is essential to the efficient and reliable operation of the used oil processing plant. The equipment list below is on the order of importance from a centrifuge perspective.

Used Oil Heating / Tank Heating

The higher the temperature of the used oil, the higher the efficiency of the centrifuges. In other words, the used oil processing temperature is the critical factor that determines the system efficiency.

Therefore, the availability of heating in the storage tanks and in-process used oil has a significant impact on the overall system performance.

Pre-Strainers or Filters

As described above, the pre-strainers are primarily used to protect the downstream equipment especially the centrifuges from large debris that can cause blockage and damage. Transfer pumps are also susceptible to damage from large solids.

Transfer Pumps

The transfer pumps are an integral part of the used oil processing system and their reliability is crucial for plant operation. Heavy-duty, positive displacement pumps are reliable and promote long service life for used oil centrifuges.

Sludge Receptacles

The separated solids and sludge from used oil centrifuges are in a semi-dry state and discharges continuously from the centrifuges. Sludge receptacles are required at each centrifuge station and are often designed into the centrifuge system itself.

Sludge containers for industrial centrifuges feature specific design features that allow them to be integrated into the centrifuge modules.

Utilities

All used oil recovery facilities using centrifuges require electricity (460 V), water, and compressed air. Often times the availability of steam as a heating medium is helpful to pre-heat the used oil in the storage tanks.

Waste Disposal

The other waste stream a used oil facility generates is separated water that carries trace amounts of oil. Used oil processors collect this water in a settling tank to let the oil float to the top and decant the water through the tank bottom. The floating oil layer is sent back to the centrifuge for oil recovery.

Also, if the used oil contains emulsions, the emulsified phase comes out of the centrifuges as a separate stream that requires disposal.

FAQ

Can a used oil centrifuge separate glycol from engine oil?

An Alfa Laval used oil centrifuge can continuously separate glycol from used engine oil. The glycol will discharge through the centrifuge's heavy phase or water outlet.

Is there a difference between a used oil centrifuge and WVO centrifuge?

A used oil centrifuge is designed to separate used oil from water and sludge. The same centrifuge may separate WVO from water and solids with some minor modifications. If the WVO application also involves biodiesel, the elastomers also need to be upgraded.

How does acid-treated used oil affect the used oil centrifuge?

Acid-treated used oil has a low pH and is therefore not directly suitable for generic disc-stack centrifuges that may have material that is not compatible with low pH fluids. Specially manufactured acid-resistant components need to be retrofitted for such applications.

What is the dryness of the separated sludge discharge of the decanter centrifuge?

The separated sludge discharge from a decanter centrifuge is typically about 50% dry. It commonly has a consistency of fudge or toothpaste. It is drip-free from well-adjusted decanters.

Why can't we process used oil at ambient temperature?

Used oil at ambient temperature is quite viscous and resistant to separation in the centrifuge. Higher temperatures lower the viscosity of used oil, increasing the centrifuge efficiency by multitudes.
