Alfa Laval Industrial Centrifuges | Types, Uses, Advantages, Specifications

Alfa Laval industrial centrifuges are fluid separators designed and manufactured to separate fluids on a large scale. These centrifuges exert high centrifugal force to affect the separation of solids from liquids and liquids from liquids.

Types

Alfa Laval manufactures two types of industrial centrifuges. These are known as Decanter and Disc Stack centrifuges. The primary difference between these two centrifuges is the centrifugal forces exerted by each centrifuge on the process fluid.

The other main differentiating factor is the orientation of the centrifuges. In the following section, we delve into the features of each of these centrifuge types.

Decanter Centrifuges

An Alfa Laval decanter centrifuge is a horizontal centrifuge encompassing a rotating stainless steel cylinder with a concentric sludge auger in the center of the cylindrical bowl.

The auger or conveyor rotates with the bowl at a differential speed to the drum.

Operation

The inlet tube feeds the slurry into the rotating bowl of the decanter. The centrifugal force generated by the rotation causes the heavy sludge particles to move outward towards the bowl wall and accumulate against this wall. The lighter fluid displaces the heavier sludge and moves radially inwards towards the center of rotation of the bowl.

Dewatering Centrifuge Animation
Decanter Centrifuge Animation

The auger pushes the sludge towards the solid’s discharge ports on the far end of the rotating bowl. The centrifugal force causes the sludge to eject the bowl through the ports.

The displaced fluid moves towards the opposite end of the bowl, towards the fluid discharge ports. The separated fluid flows over the weir dams and falls out of the bowl into the liquid receptacle.

Disc Stack Centrifuges

Alfa Laval disc-stack centrifuges are vertically oriented centrifuges that feature a rotating bowl with a set of discs known as a disc-stack. These centrifuges rotate faster than the decanter centrifuges and exert a higher gravitational force on the fluid.

This higher centrifugal force allows the disc stack centrifuges to separate smaller solid particles from the fluid and separate two immiscible fluids.

Operation

The feed tube introduces the process fluid into the centrifuge bowl from the top. The fluid passes through the inter-disc space where the high centrifugal force acts on it. The g-force slings the heavy solids towards the outer bowl wall, and the lighter liquid moves towards the center of the bowl. It exits the bowl through a specially designed liquid chamber.

Disc Centrifuge Self Cleaning Animation
Alfa Laval Disc Centrifuge Self Cleaning Animation

In the case of liquid-liquid separation, the heavier liquid accumulates on the outer bowl periphery and passes through the heavy phase discharge chamber to exit the bowl. The lighter liquid moves towards the bowl center and exits the bowl through the light phase chamber.

FAQ

What type of industrial centrifuges does Alfa Laval manufacture?

Alfa Laval manufactures decanter and disc-stack types of industrial centrifuges. The disc-stack centrifuges are available in self-clean or manual-clean design options.

What powers Alfa Laval industrial centrifuges?

Electric motors power almost all Alfa Laval industrial centrifuges. Some unique applications may have a hydraulic motor as the power source.

What are the utilities required to operate Alfa Laval centrifuges?

Electric power is the main utility required to operate all Alfa Laval centrifuges. In addition, disc stack centrifuges of the self-cleaning type require clean, potable water to operate the sludge ejection mechanism of the bowl.

What is the typical operating voltage for Alfa Laval industrial centrifuges?

Most Alfa Laval industrial centrifuges are designed to operate on a 480 Volt, 3-phase power supply. Some centrifuges are customizable to operate on 120 or 230 volts, a single-phase power supply.

Why are Alfa Laval industrial centrifuge so wide spread in industry?

Alfa Laval has been manufacturing centrifuges for over 100 years, and they are known for high-quality, durable centrifuges, which are well known worldwide. In addition, the easy availability of spare parts (both original and generic) makes them popular amongst long-time users.

Applications

Alfa Laval industrial centrifuges find many applications in process industries such as food, beverage, chemical, pharmaceutical, waste treatment, environmental recycling, manufacturing, etc. High capacity fluid separation is an integral part of the process in such industries.

The following are some of the Alfa Laval centrifuge applications in some of these industries.

Food

From the separation of cheese to soy protein, Alfa Laval centrifuges are the critical component of the food processing industry. Alfa Laval disc-stack centrifuges concentrate the milk proteins and separate them from the whey.

Alfa Laval decanter centrifuges separate the soy protein for tofu and milk-based cheese production amongst other similar applications.

Beverage

The standardization of milk (fat proportioning) is a common application for Alfa Laval disc-stack centrifuge. In fact, the old cream separators were the first version of commercial disc-stack centrifuges.

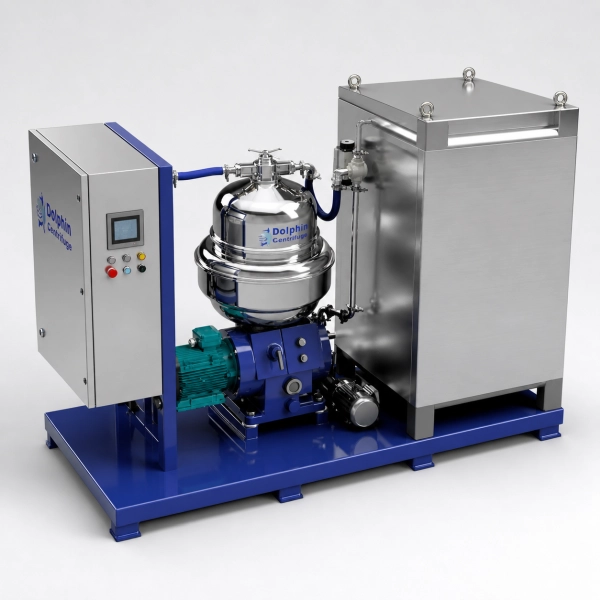

Beer, wine, cider, etc., are all clarified using disc-stack centrifuges on a commercial scale. Other organic beverages such as almond and oat milk also use Alfa Laval decanters and sics-stack centrifuges to clarify the milk from the organic mass.

Chemical

Industrial chemicals manufacturers use a variety of Alfa Laval industrial centrifuges for all kinds of separation applications. These centrifuges are standard in all chemical production plants, from separating centrate to clarifying fine sediment from process chemicals.

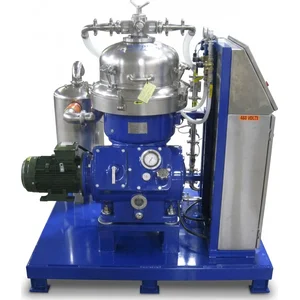

Depending on the type of chemicals, industrial centrifuges for chemical separation are often made of high-grade stainless steel to make them corrosion resistant. Unique applications with oxidizing agents require inert gas blanketing of the centrifuge.

Pharmaceutical

Industrial centrifuges are crucial in separating biological cells from the centrate or broth from cell cultures to bacteria harvesting to vaccine production. The commercial manufacturing of raw pharmaceutical ingredients utilizes Alfa Laval centrifuges in a variety of applications.

Waste Treatment

The large-scale treatment of sewage and municipal wastewater uses Alfa Laval industrial centrifuges. Decanter centrifuges are the backbone of waste treatment facilities worldwide. These centrifuges are efficient devices for separating organic waste sludge from water, reusing the wastewater.

Industrial waste streams cannot be discharged into the local drainage system without separating the sludge to a designated level before disposal. Industrial waste centrifuges efficiently separate the fluid from industrial slurries before disposal or remediation.

Environmental

The recycling of used mineral oils from automobiles and other industrial applications is an important activity to reduce the environmental impact of these waste streams.

Alfa Laval centrifuges are efficient devices to separate large volumes of used oils from water and sediment, allowing the reuse of these fluids.

The conversion of used cooking oil into organic lubricants and biodiesel is another popular application for these centrifuges. Centrifuges play a crucial role in separating various impurities throughout the process of purification of UCO (used cooking oil) and its conversion into biodiesel through the esterification process.

Manufacturing

Manufacturing activities in industries use different types of fluids, from lubricants to metal cutting coolants. These metalworking fluids are expensive, and the reuse of these fluids offers considerable cost savings to the manufacturers.

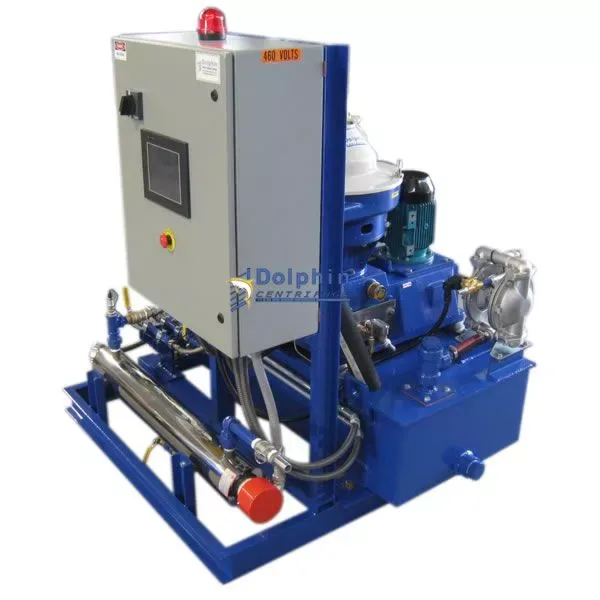

Alfa Laval disc-stack centrifuges are efficient at the separation of fluids from the accumulated contaminants. For example, a water-based machining coolant has tramp oil and metal fines as contaminants that can reduce the useful life of the coolant. A three-phase disc stack centrifuge easily separates the coolant from tramp oil and metal fines continuously. It is possible to reuse the recovered coolant multiple times, reducing the replenishment cost and disposal fees.

Quench oil is another example of an industrial fluid ideal for recovering with a disc-stack centrifuge set up as a clarifier. The centrifuge removes fine rust and metal sludge to restore the properties of the quench oil that the user can then reuse multiple times.

Natural Resources

Mining is a global activity that extracts natural resources for all industrial and power applications. Mining equipment use lubricants and coolants that are easy to recover with industrial decanter and disc-stack centrifuges.

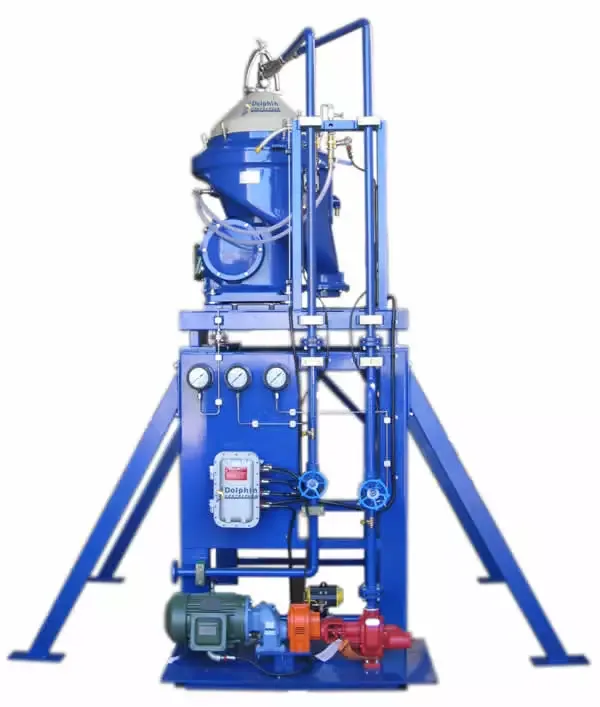

Alfa Laval manufactures special centrifuges for hazardous mining applications with explosion-proof design and motors.

Power & Utilities

Most power plants have steam turbines that generate electricity. These turbines use lube oil for bearing lubrication. Contamination of this lube oil leads to unscheduled maintenance and premature failure of the turbines.

An Alfa Laval lube oil centrifuge separates metal fines and moisture from the lube oil, ensuring the steam turbine’s reliable operation.

Some cogeneration power plants use heavy fuel oil (HFO) as the source of energy. The purification of HFO is crucial for the efficient operation of the generators. Fuel oil centrifuges manufactured by Alfa Laval ensure the supply of clean fuel oil consistently.

Transportation

Ocean-going vessels, tugs boats, barges, etc., all use diesel for propulsion engines. The diesel storage tanks onboard the vessels accumulate sludge (rust) and water from condensation. The engines require clean diesel for reliable operation.

An Alfa Laval diesel centrifuge separates the water and sludge contaminants from diesel, continuously keeping the fuel clean for the engines.

Larger ocean-faring vessels use heavy fuel oil as the fuel for engines. Again, Alfa Laval industrial centrifuges are well suited for separating water and sludge from HFO to ensure a clean fuel supply to the engines.

Advantages

Alfa Laval industrial centrifuges have several advantages over traditional separation technologies that involve media or gravity separation. Some of the advantages of these centrifuges are listed below.

Compact Size

Industrial centrifuges are relatively compact as compared to filters, settling tanks, and other separation equipment. For similar throughput capacity, an Alfa Laval centrifuge is a fraction of the size of filter or screw presses.

The smaller footprint allows the installation of these centrifuges in confined spaces.

Separation Efficiency

Industrial centrifuges exert a high centrifugal force on the fluid, which translates to high separation efficiency. Comparatively, filters and settling tanks have lower particle separation capacity and lower operating efficiency.

Also, the separation efficiency of industrial centrifuges made by Alfa Laval is adjustable during processing by adjusting the flow rate and other factors.

Continuous Processing

Alfa Laval industrial centrifuges feature a flow-through design that allows for the continuous separation of fluids without process interruptions for sludge cleaning. These centrifuges can process fluids for long periods of time, sometimes as long as months, without shutdown.

Other separation devices such as presses (filter and screw), gravity settling tanks, etc., operate in a batch mode that requires the equipment to be shut down and cleaned periodically.

Operating Costs

Alfa Laval centrifuges are mechanical separation devices. They use the accelerated force of gravity to affect the separation of solids from liquids. Therefore, they do not use any media such as filter media.

The absence of media implies that the labor associated with replacing the media is also not needed. Both these advantages make these centrifugal separation devices have considerably lower operating costs.

Equipment Durability and Longevity

Alfa Laval decanter and disc-type industrial centrifuges feature high-quality material of construction and heavy-duty design. This robust construction enables these centrifuges to have a long service life and durable performance.

Disadvantages

Certain limitations can impede the implementation of Alfa Laval centrifuges for all conceivable applications. The following are some of the disadvantages of industrial centrifuges.

Equipment Cost

Industrial centrifuges are slightly more capital intensive as compared to other separation equipment. Depending on the processing capacity, the initial cost of an Alfa Laval centrifuge can be twice that of filter presses.

The continuous processing ability and low operating cost compensate for the higher initial cost in a short time.

Maintenance

All industrial separation equipment needs some sort of maintenance. However, industrial centrifuges have bowls that rotate at high speeds that require special bearings. Therefore, periodic maintenance of these centrifuges is required to ensure reliable operation and minimize breakdowns.

Some consider the cost and time of maintenance as a disadvantage though the frequency and downtime of maintenance are not that significant.

Utilities

Alfa Laval disc-stack centrifuges require water and compressed air in addition to power. These additional utility requirements can detriment the application of these centrifuges at remote locations where clean water is not available.

Skilled Operators

Centrifuges are more sophisticated mechanical devices than presses or filters. Therefore, these machines are best operated by skilled operators who are familiar with the inner workings of centrifuges. On the other hand, filters and presses are operable by semi-skilled or unskilled labor.

Specifications

The following tables list some of the crucial specifications of industrial centrifuges manufactured by Alfa Laval.

Decanter Centrifuge

Alfa Laval FPNX-414Alfa Laval UVNX-418
Bowl Speed4,000 RPM4,000 RPM
G-Force3,150 Gs3,150 Gs
Max. Processing Capacity60 GPM120 GPM
Motor Power15 HP25 HP
Specific ApplicationFish Oil SeparationOlive Oil Separation
Gearbox TypePlanetaryPlanetary
Gearbox Ratio125 : 1125 : 1
Weight2,000 Lbs4,500 Lbs
Dimensions3' x 7' x 5' (H)3' x 12' x 5' (H)
Fluid Wetted Parts Material316 L Stainless Steel316 L Stainless Steel

Disc Stack Centrifuge

Alfa Laval MAB-103Alfa Laval WHPX-513
Bowl Speed8,100 RPM4,140 RPM
G-Force7,800 Gs6,950 Gs
Max. Processing Capacity2 GPM100 GPM
Motor Power1 HP15 HP
Specific ApplicationDiesel Fuel SeparationUsed Oil Separation
Fluid DischargeGravity (Oil & Water)Pumped (Oil & Water)
Sludge DischargeManual CleanSelf-Ejected
Weight220 Lbs2,500 Lbs
Dimensions2' x 3' x 2' (H)4' x 5' x 6' (H)
Fluid Wetted Parts Material316 L Stainless Steel & Bronze316 L Stainless Steel & Bronze
Contact

To get more details email us or call us on (248) 819-1732
