Stainless Steel Centrifuge | Chemical & Food Grade Applications

Hemp CBD Oil Ethanol Winterization Centrifuge
Stainless Steel Hemp CBD Oil Ethanol Winterization Centrifuge

Table of Contents

Stainless steel centrifuges are specially designed disc-stack centrifuges for separating corrosive chemicals and food products. A pass-through feature allows continuous processing through stainless-steel centrifuges. A high centrifugal force of over 7,000 g separates fine sediment down to 1 micron.

The Alfa Laval stainless steel centrifuges are generally of the food-grade (sanitary) design configuration. This design means that all the fluid contact parts are made of high-grade stainless steel (316L).

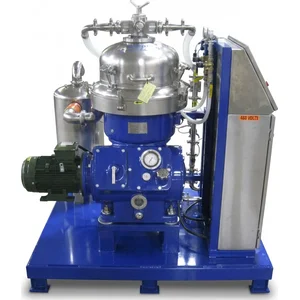

Alfa Laval CRPX-207 Stainless Steel Kelp Seaweed Centrifuge
Alfa Laval CRPX-207 Stainless Steel Kelp Seaweed Centrifuge

Some centrifuges have a stainless steel sludge discharge chute as well. These machines are applicable where the separated solids are of value to the customer.

For example, the precipitate is a valuable extract that must have all stainless steel contact in food flavoring extraction.

These food-grade centrifuges are available in a three-phase configuration, making them suitable for fish oil, rendering, and other similar applications.

Alfa Laval Food Grade Stainless Steel 3-Phase Disc Centrifuge
Alfa Laval Food Grade Stainless Steel 3-Phase Disc Centrifuge
Alfa Laval Stainless Steel Decanter Centrifuge Module
Alfa Laval Stainless Steel Decanter Centrifuge Module
Alfa Laval Stainless Steel Centrifuge
Alfa Laval Stainless Steel Stack-Disc Centrifuge
Alfa Laval Stainless Steel Disc Stack Centrifuge
Alfa Laval Stainless Steel Disc Stack Centrifuge

Alfa Laval AFPX 213 Centrifuge

The Alfa Laval AFPX 213 Centrifuge is a self-cleaning, disc-stack, stainless-steel centrifuge with all wetted parts made of 316L stainless steel.

With a 15 HP Motor, the AFPX 213 centrifuge has a bowl RPM of 4,150 and can process vegetable juice clarification at 50 GPM.

Applications

The Alfa Laval AFPX 213 Clarifier centrifuge is also used for the following applications.

Alfa Laval Food Grade Centrifuge Colorado
Alfa Laval AFPX 213 Centrifuge with Feed Pump, Sludge Tank & Filters

Specifications

Model TypeAlfa Laval AFPX 213 XGD 14-60
Maximum Capacity100 GPM on Water
Rated Capacity50 GPM on Hemp Ethanol Polishing
Sludge Space3.87 Gallons
Bowl Speed4,600 RPM
G-Force7,200 Gs
Drive Motor15 HP
Voltages230 / 460 V
Size5' x 7' x 7' (H)

Alfa Laval BRPX 313 Centrifuge

The Alfa Laval BRPX 313 Centrifuge is a disc-stack, stainless-steel centrifuge with all wetted parts made of 316L stainless steel.

With a 15 HP C1D2 Motor, the BRPX 313 centrifuge has a bowl RPM of 5,100 and can process hemp ethanol clarification at 50 GPM. The control system is also suitable for Class 1 Div 2 hazardous area applications like Hemp CBD OIl Ethanol polishing.

Hemp Extraction Centrifuge
Hemp Extraction Centrifuge - C1D2 Hazardous Area Certified
Alfa Laval Disc Stack Centrifuge Stainless Steel Explosion Proof
Alfa Laval Disc Stack Centrifuge Stainless Steel Explosion Proof

Applications

The 3-phase version of the BRPX-313 centrifuge has multiple liquid/liquid/solid separation applications in the food industry. Some of these applications are:

Specifications

Model TypeAlfa Laval BRPX 313 SGT 24-60
Rated Capacity50 GPM on CBD Ethanol Clarification
Sludge Space3.87 Gallons
Motor HP:15 HP
Voltages:230 / 460 V

Alfa Laval BRPX 309 Beer Centrifuge

The Alfa Laval BRPX 309 Centrifuge is a beer-clarifying centrifuge made of stainless steel and designed for the clarification of Beer, Wine, Cider, and other beverages.

With a 10 HP Motor, the BRPX 309 centrifuge has a bowl RPM of 7,100 and can process 30 GPM of Beer for yeast separation.

Alfa-Laval-BRPX309-Stainless-Steel-Wine-Centrifuge
Alfa Laval BRPX 309 SGT Centrifuge for Beer, Wine, Cider Clarification

Specifications

Model TypeAlfa Laval BRPX 309 SGT 24-60
Rated Capacity30 GPM on Beer, Wine, and Cider Clarification
Sludge Space1.35 Gallons
Motor HP:10 HP
Voltages:230 / 460 V

Alfa Laval AFPX 207 70-S Three-Phase, Disc-Stack Centrifuge

The Alfa Laval AFPX 207 Stainless-Steel contact centrifuge is a self-cleaning disc-stack centrifuge designed for the three-phase separation of animal fat (AF), fish oil, clarified butter, fish-stickwater, edible oils, and others.

With a 10 HP Motor, the AFPX 207 centrifuge has a bowl RPM of 6,400 and can process 20 GPM of animal fat at 180 F.

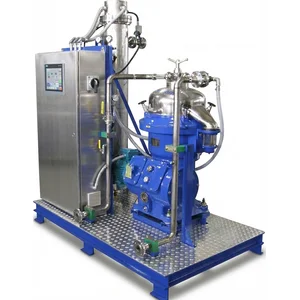

Alfa Laval AFPX207 Food Grade Centrifuge
Alfa Laval AFPX-207 Food Grade Centrifuge

Specifications

Model TypeAlfa Laval AFPX 207 70S
Rated Capacity20 GPM on Animal Fat Rendering @ 180 F
Sludge Space1.12 Gallons
Motor HP:10 HP
Voltages:230 / 460 V

Contact

To get more details email us or call us at (248) 522-2573
