The purpose of our Alfa Laval centrifuge selection guide is to help potential customers to select the correct type of industrial centrifuge for their specific application. This article discusses the selection process that will help you identify if a decanter centrifuge or disc-stack centrifuge is suitable for your solid, liquid separation.

Suitability

Alfa Laval centrifuges are designed to separate fluids from solid and liquid contaminants. These centrifuges feature a flow-through design which means that the predominant phase in the process material should be fluid that can flow.

In other words, process material that is predominantly solid that cannot flow freely is not suitable for these centrifuges.

In addition, these separating devices can separate liquids from other immiscible liquids and solids.

Suitable

Based on the above, applications such as separation of waste oil from water & sludge, diesel from water, ethanol from hemp biomass, wastewater from sludge, lube oil from moisture and metal particles, fish oil from stickwater, and fish meal, crude oil from salt-water and sand, etc. are applications that are well suited for Alfa Laval centrifuges.

Decanter and stack-disc centrifuges are suitable for many other similar liquid/solid and liquid/liquid/solid separation applications.

Not Suitable

Alfa Laval decanter and disc stack centrifuges are limited to applications wherein the process material is fluid, i.e., pumpable and flowable. Therefore, applications with a large volume of solids relative to the liquid are not suitable for these centrifuges.

The separation of solvent from rags, extracting oil from used filters, etc., are not suitable applications for these Alfa Laval centrifuges.

Selection Process

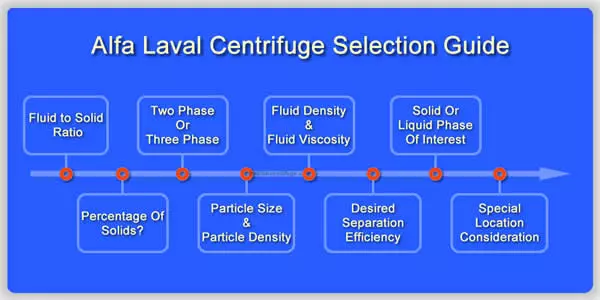

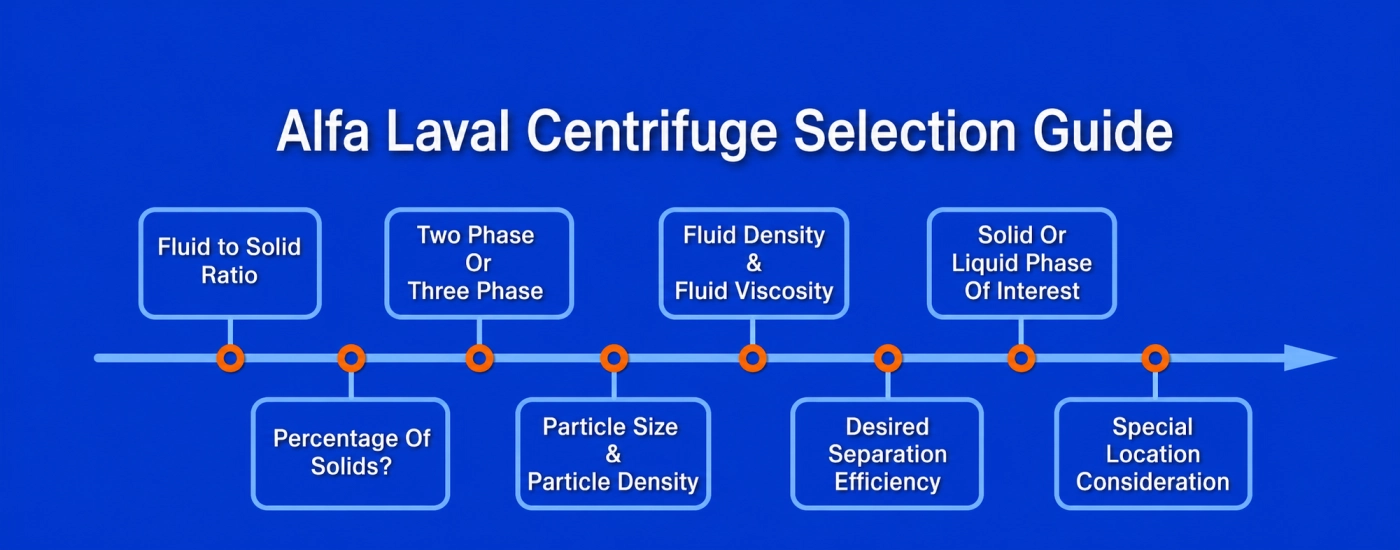

Typically, we follow the following selection process to narrow down the type and model of centrifuge that is best suited for the specific application.

With your assistance, we will try and understand the following parameters related to your process application.

Fluid Properties

The most crucial consideration in selecting the correct centrifuge is the properties of the process fluid. The following is a list of the essential parameters from a centrifuge perspective.

Percentage of Solids

Centrifuge Graduated Tube
Centrifuge Graduated Tube Showing % of Solids

A vast majority of Alfa Laval centrifuges eject the separated solids automatically. The proportion of solids in the process fluid is critical since it affects the solids discharge mechanism built into the centrifuge.

For example, process fluids such as wastewater with a high percentage of solids (sludge) require a continuous discharge of the separated solids. This specific requirement eliminates the stack-disc centrifuges that intermittently discharge solids. On the other hand, a decanter centrifuge can handle up to 50% solids by volume and is well suited for this application.

A disc-stack centrifuge limits the percentage of solids it can handle due to its periodic solids ejection cycle. The centrifuge discharge frequency exceeds the recommended range with a high percentage of solids, and the centrifuge loses process efficiency.

However, with its high centrifugal force and separation efficiency, a disc-stack centrifuge is a good choice for applications with a limited (< 8% or so) percentage of solids. The proportion of the two liquid phases (in case of liquid/liquid separation) does not significantly impact the performance of the disc-stack centrifuge.

Particle Size Distribution

Decanter and stack-disc centrifuges have maximum particles size in the process fluid. These limits are based on the size of the sludge outlet ports in the case of a decanter centrifuge.

An Alfa Laval NX series decanter, for example, has 40-millimeter sludge ports and, therefore, allowable solids into decanter centrifuge are limited to that size.

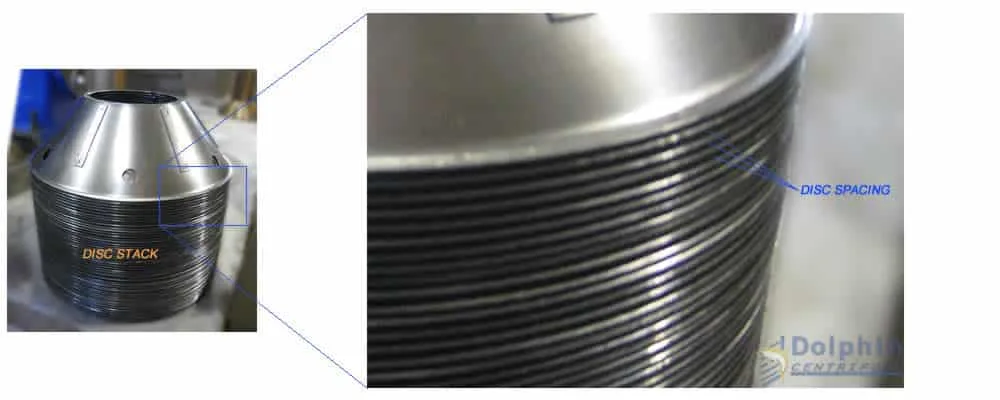

Disc Stack Centrifuge Disc Spacing
Disc Stack Centrifuge Disc Spacing

In a disc-stack centrifuge, the inter disc spacing limits the particle size to allow the free flow of particles towards the bowl wall (as shown above). A typical disc-stack centrifuge has discs that are up to 2 millimeters apart. Therefore, a disc stack centrifuge cannot handle particles larger than the space between the discs in the stack.

Specific Gravity of Solids

The specific gravity of the solids in the process stream is also an important consideration. Heavier solids (with a relatively higher specific gravity than the liquid) are easier to separate than lighter solids.

Lighter solids with a specific gravity closer to the process liquid require a higher centrifugal force to separate the solids. In such cases, a disc-stack centrifuge with its higher centrifugal force is better suited for the application.

On the other hand, a decanter centrifuge has a lower centrifugal force, and therefore it is more suited for solids with higher specific gravity than that of the fluid.

Referring to the previous consideration regarding the percentage of solids, fluids with a high percentage of light solids (small specific gravity differential between solids and liquids) require a two-step process. In such cases, a decanter centrifuge separates a bulk of the larger solids (size), and a downstream disc-stack centrifuge uses its high centrifugal force to separate the remaining finer particles.

Number of Phases

Alfa Laval centrifuges of the decanter and disc-stack type can separate liquids from other liquids and solids. However, the separation of liquid from liquids is trickier because it requires the adjustment of the centrifuge based on the specific gravity ratio of the liquids.

Also, the high centrifugal force in the stack-disc centrifuge offers an advantage in the liquid-liquid separation process.

Therefore, if the percentage of solids in process fluids with liquid-liquid-solids mix is manageable with a disc-stack centrifuge, then a three-phase disc stack centrifuge is ideal for the application.

However, if the percentage of solids is high, a decanter centrifuge acts as a de-sludger upfront, followed by a three-phase disc stack centrifuge to separate the two liquid phases.

Fluid Viscosity

The viscosity of the process fluid is the ‘thickness’ of the liquid in layman’s terms. The fluid process viscosity is an essential factor in determining the type of centrifuge.

Fluids with higher viscosity tend to be difficult to separate with centrifuges due to the resistance offered by the fluid to the movement of the solid particles during separation. A higher centrifugal force helps the separation of particles in viscous liquids.

A disc stack centrifuge has a higher centrifugal force that makes separating solids in viscous liquids easier.

The user can reduce the viscosity of thicker fluids by increasing the temperature of the liquid to a certain extent. However, not all process fluids are suitable for heating.

Also, the user can overcome the adverse effects of higher viscosity by increasing the residence time of the process fluid inside the centrifuge. Reducing the process flow rate increases the residence time of the process fluid. Therefore, processing viscous liquids at a lower flow rate helps separation.

Using a higher capacity centrifuge allows the operator to reduce the flow rate and achieve higher residence time to separate viscous liquids for a given throughput requirement.

Process Volume

The amount of process fluid defines the size of the centrifuge once the type of centrifuge is narrowed down based on the previous considerations. Alfa Laval centrifuges are available in various sizes, and their ability to process fluid volume defines the size.

For example, disc-stack centrifuges are available that can process 2 GPM to over 300 GPM. Decanter centrifuges that process 10 GPM to over 1000 GPM are available from Alfa Laval.

With a relatively lower G-force, decanter centrifuges have a more significant process capacity than stack-disc centrifuges. This large capacity is partly because decanter centrifuges have a complete flow-through design to handle larger volumes.

Desired Separation Efficiency

Decanter and Disc Centrifuge particle Size Efficiency
Decanter and Disc Centrifuge particle Size Efficiency

Alfa Laval decanter and disc-stack centrifuges generate different centrifugal forces. A decanter centrifuge typically exerts G-forces in the range of 3,000 Gs. In comparison, a disc-stack centrifuge generates G-forces over 7,000 Gs.

The higher G-force allows the disc-stack centrifuge to separate smaller particles as compared to a decanter centrifuge.

In other words, the particle size separation efficiency of a decanter centrifuge is over 100-microns, and that of a disc stack centrifuge is as low as 1-micron.

If the users’ goal is to remove minute particles (1~50 microns) from the fluid, then a disc-stack is an ideal choice if the proportion of solids is within the range for disc stack centrifuges.

On the other hand, if the proportion of solids is high (over 10% v/v) and the solids are bigger, then a decanter centrifuge is a good choice for the application.

FAQ

What are the main factors that determine the type of Alfa Laval centrifuge for an application?

The main factors determining the type of Alfa Laval centrifuge best suited for an application include the processing capacity required, the percentage of solids in the process fluid, two or three-phase separation, separation efficiency desired, and the installation environment.

What is the cost difference between similarly sized decanter and disc stack centrifuges?

The cost differential between decanters and disc-stack centrifuge of similar capacity are typically around 30%, where decanter centrifuges cost more than disc stack centrifuges.

If both decanter and disc-stack centrifuges are applicable for a process, which centrifuge is the first in the process flow?

In cases where both decanter and disc-stack centrifuge are applicable, the decanter centrifuge is always installed upstream of the disc-stack centrifuge. This sequence of centrifuges is due the decanter centrifuges' ability to separate the bulk of the sludge, which the downstream disc-stack centrifuge cannot handle.

Are decanter and disc stack centrifuges continuous flow separators?

Decanters and disc stack centrifuges are continuous flow machines that continuously separate the fluid into its different phases. Some disc-stack centrifuges momentarily stop processing the fluid during the sludge ejection cycle while continuing to rotate.

Are decanters larger in size than similar capacity disc stack centrifuges?

Decanters are longer than disc-stack centrifuges of similar capacity, whereas disc-stack centrifuges are taller than decanters of similar capacity. This difference is primarily due to the horizontal axis of rotation of decanter centrifuges and a vertical axis of rotation of disc-stack centrifuges.

What is the smallest particle a decanter and disc-stack centrifuge can separate?

The smallest particles a decanter centrifuge can separate are in the 50 to 100-micron range depending on the fluid viscosity and particle density. A disc-stack centrifuge can separate particles as small as 1-micron, again depending on the fluid viscosity and density of the particles. Other factors such as flow rate, centrifuge parameters also affect particle size efficiency.

Lab Scale Testing

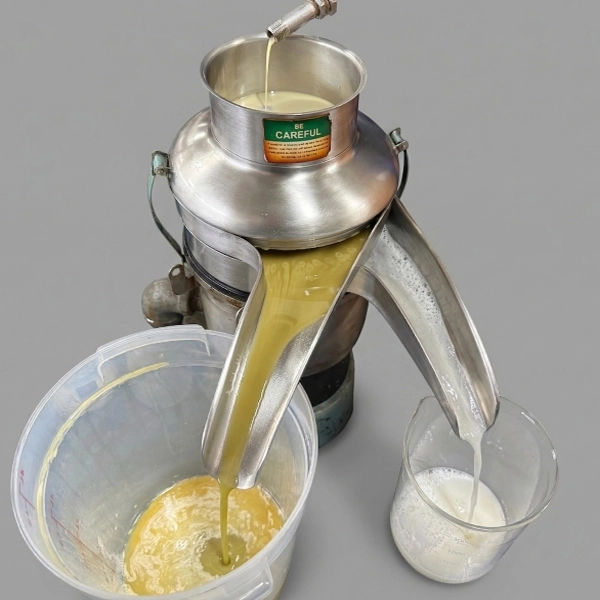

Industrial Centrifuge Pilot Testing Setup
Lab Scale Industrial Centrifuge Lab

We have an Alfa Laval lab-scale disc-stack and test tube centrifuge that exerts centrifugal force similar to production scale centrifuges. Lab-scale testing of process fluid samples allows the potential customer to evaluate the applicability and efficiency of disc stack and decanter centrifuges. The lab-scale centrifuge has two configurations, namely disc-stack bowl and test-tube attachment.

Disc Stack Bowl

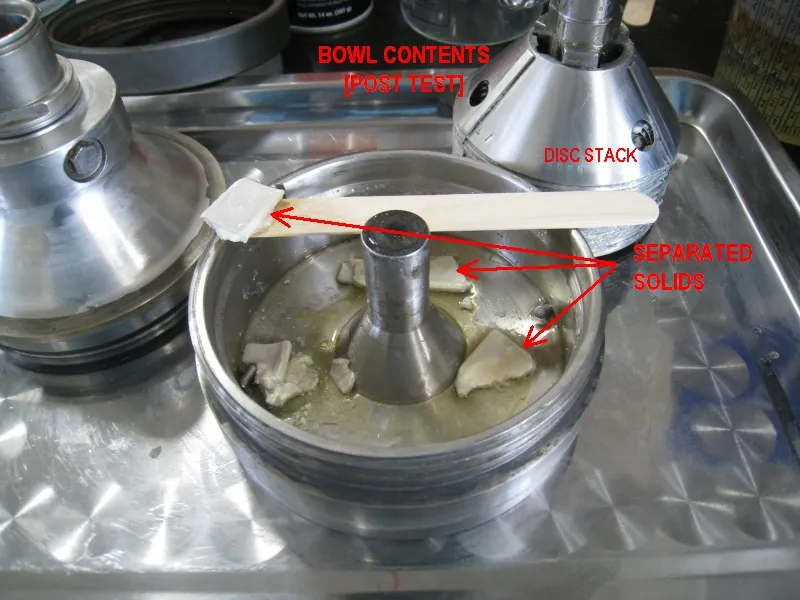

Bowl Contents
Lab Scale Disc Centrifuge Bowl

The processing of a small fluid sample (~1 Gallon) through this lab-scale disc stack centrifuge bowl demonstrates the ability of these centrifuge’s applicability to specific fluid separation processes, including the separation of small particles and liquid-liquid separation.

In liquid-liquid separation, the two separated liquids and solids (if any) are available for the customer to review or analyze to further establish the disc-stack centrifuge efficacy.

Test Tube

Industrial Centrifuge Pilot Testing Results
Industrial Centrifuge Pilot Testing Results

The test-tube method helps evaluate the applicability of decanter centrifuges by a quick spin-test. This test is applicable for fluids with a high proportion of solids.

In this test, if the solids settle out of the liquid within a predetermined time interval, the decanter centrifuge is often suitable for the process. If the solids are still suspended after the spin, the fluid may not be suitable for separation with a decanter centrifuge.

Special Considerations

For specific uses, additional considerations may be applicable that can affect the centrifuge selection process.

Explosion Proof or Hazardous Areas

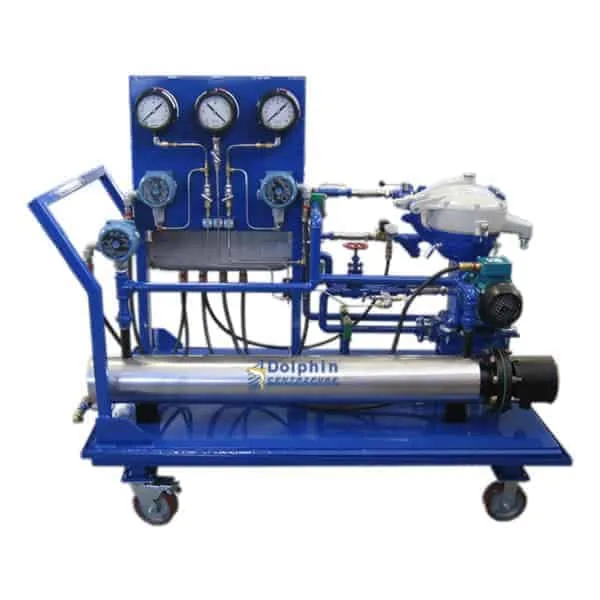

Alfa Laval Compressor Oil Centrifuge Package
Explosion Proof Alfa Laval Oil Centrifuge

The installation of centrifuges in the presence of flammable liquids, vapors, or dust requires the selection of a special centrifuge that is suitable for such environments. Special modifications of standard centrifuges can allow their application in such areas.

Read our article about the application and execution of explosion-proof centrifuges.

Accessories Selection

The selection of certain accessories can enable an Alfa Laval decanter or disc-stack centrifuge for applications not directly applicable to the base centrifuges. Some of these enhancements and their related benefits are below.

Strainer

As discussed above, Alfa Laval centrifuges have inherent limitations on the maximum particle size and the percentage of solids. This limitation does not necessarily prevent the use of a specific centrifuge for an application.

The use of strainers or filters can separate the large particles from the process fluid. This pre-grading may allow the use of a centrifuge which would otherwise not be applicable due to particle size limitations.

Filter banks can catch the larger particles in bulk, reducing the proportion of solids in given process fluid. A disc-stack centrifuge, for example, maybe applied with the reduction of the solids load through pre-filtration.

Process Heater

Oil Viscosity versus Temperature
Oil Viscosity versus Temperature Graph

Highly viscous fluids such as heavy crude oil, heavy fuel oil, and some gear oils are typically too thick for Alfa Laval centrifuges. But with the use of a pre-heater, the increase in temperature reduces the oil’s viscosity, making it suitable for processing with centrifugal separators.
