Alfa Laval G2-40 Decanter | High Performance Centrifuge

Table Of Contents

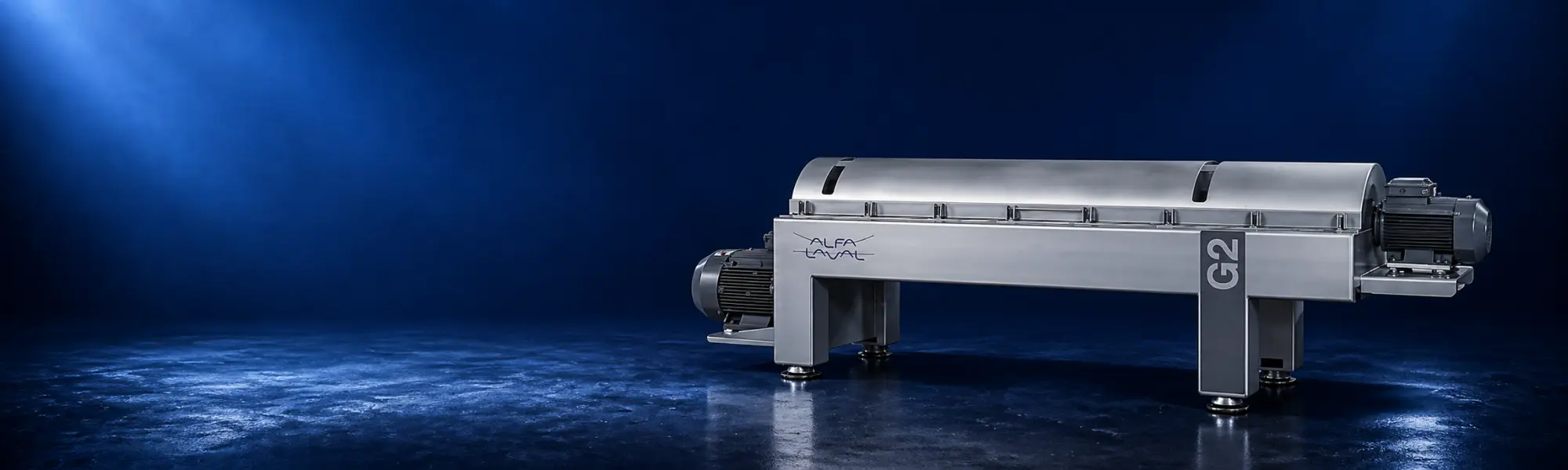

Alfa Laval G2-40 Two-Phase Decanter Centrifuge

The Alfa Laval G2-40 Decanter Centrifuge is a horizontal de-sludging centrifuge built for the two-phase separation of wastewater, crude oil tank bottoms, municipal sludge-thickening, industrial sludge dewatering, paint sludge handling, etc.

With a 25 HP Motor, the G2-40 decanter has a bowl RPM of 4,000 and can process 160 GPM of water with light sludge.

Applications

The Alfa Laval G2-40 Decanter is used for the following applications.

Alfa Laval G2 Decanter
Alfa Laval G2 Decanter

Cross Section Diagram

Decanter Cross Section
Decanter Centrifuge Cross Section

Specifications

Model TypeAlfa Laval G2-40 Decanter Centrifuge
Rated Capacity160 GPM on Water Sludge Thickening
Auger Differential Speed1 ~ 140 RPM
Drive Motor Power20 HP
GearBox Ratio1: 52 (3.5 kN-M) DD Gearbox
AE (Area Equivalent)1,565
Bowl Speed4,000 RPM
G-Force3,150 RCF
Conveyor ProtectionCarbide Tile or Tungsten Carbide Hard-Surfacing
Alfa-Laval-G2-DecanterDownload
