Alfa Laval WHPX 405 Self-Cleaning, Diesel Fuel Centrifuge

Alfa Laval WHPX 405 Partial-Discharge Disc-Stack Centrifuge

The Alfa Laval WHPX-405 Disc Centrifuge is a partial ejection separator designed to remove water and solid particles from light oil and light fuel. The WHPX 405 centrifuge has an operating speed of 7,600 RPM generating over 7,200 G-force. Pyrolysis oil and waste oil separation are perfect applications for this centrifuge.

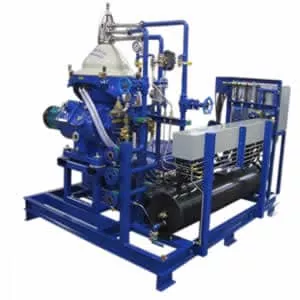

Alfa Laval WHPX 405 ATEX Hazardous Area System
WHPX 405 HFO Centrifuge Module suitable for ATEX Zone 2

Alfa Laval WHPX 405 Centrifuge Specifications

Model TypeAlfa Laval WHPX 405 TGD 24-60
Rated Capacity15 GPM on 180 cSt Light Crude Oil
Sludge Space0.36 Gallons
Motor HP:5 HP
Voltages:230 / 460 V

Alfa Laval MOPX 205 TGT Total-Discharge, Disc-Stack Centrifuge

The Alfa Laval MOPX-205 Disc-Stack Centrifuge is a self-cleaning purifier designed to separate water and sludge particles from mineral oil and fuel. The MOPX 205 centrifuge bowl rotates at 7,600 RPM generating over 7,500 G-force. This centrifuge is well suited for the cleaning of diesel fuel, transformer oil, etc.

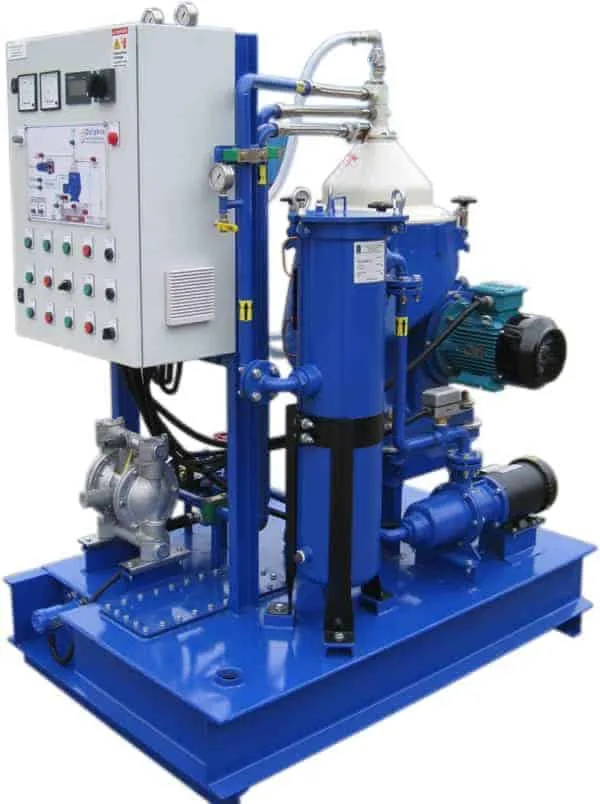

Alfa-Laval-MOPX-205-Diesel-Purifier
Alfa Laval MOPX 205 Centrifuges for Diesel Fuel Purification

Alfa Laval MOPX 205 Diesel Centrifuge Specifications

Model TypeAlfa Laval MOPX 205 TGT 20-60
Rated Capacity15 GPM on 13 cSt Diesel Fuel
Sludge Space0.38 Gallons
Motor HP:4 HP
Voltages:230 / 460 V
Alfa-Laval-MOPX205-Fuel-Oil-PurifierAlfa Laval MOPX 205 Duplex Centrifuge System DieselAlfa-Laval-MOPX205-Tire-Oil-Pyrolysis-Centrifuge
Alfa Laval WHPX405 CentrifugeAlfa Laval WHPX405 Quench Oil CentrifugeAlfa-Laval-MOPX205-Class-1-Div-1-Explosion-Proof
