Overview

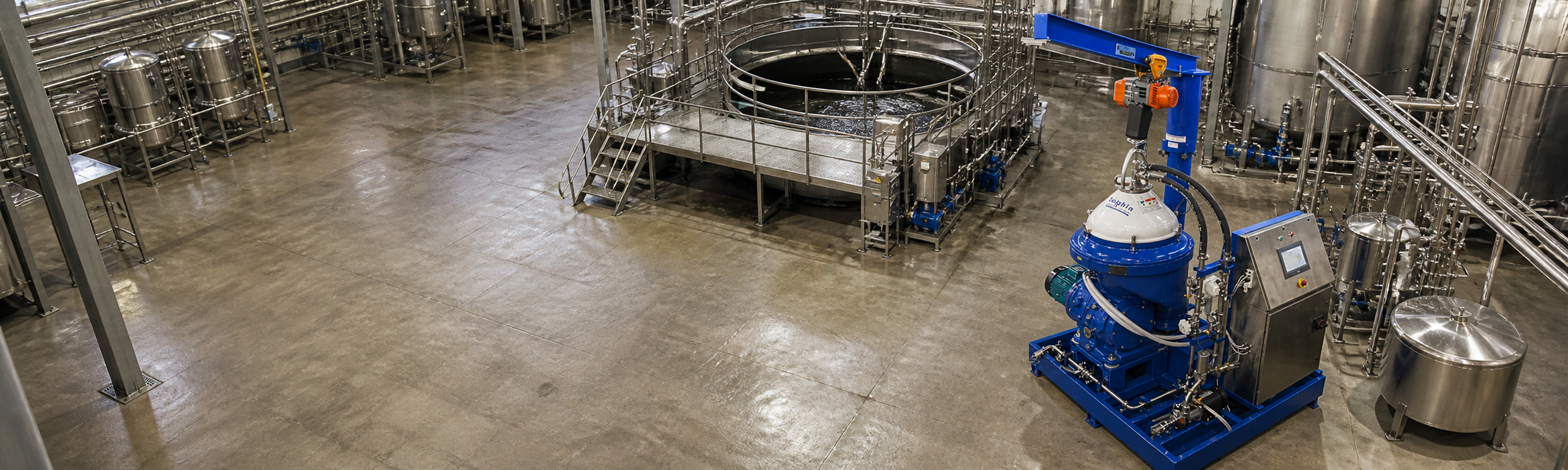

The Alfa Laval WHPX 513 Centrifuge is a self-cleaning disc-stack centrifuge built for the three-phase separation of mixed fluids and sludge.
With a 15 HP motor, the WHPX 513 has a published marine-diesel application capacity of 16,400 L/h (72.21 US GPM) at 13 cSt and a centrifugation temperature of 40 °C.

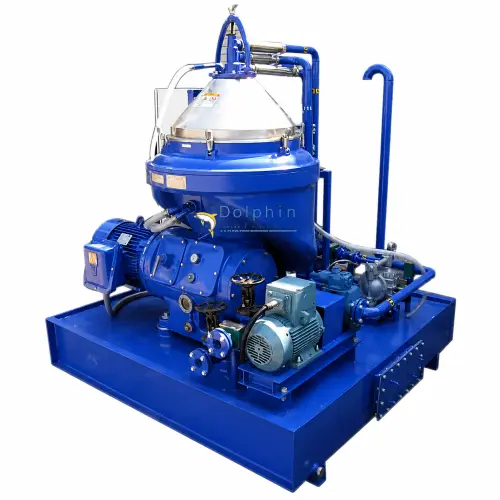

Dolphin Centrifuge is the independent specialist in Alfa Laval centrifuges, with remanufactured machines, turnkey systems, parts, and service built on 40+ years of Alfa Laval experience. Dolphin packages this machine as the DMPX-070 module, a Dolphin system built around a remanufactured Alfa Laval WHPX 513. Dolphin is an independent remanufacturer and is not affiliated with Alfa Laval.
Application
The Alfa Laval WHPX 513 Centrifuge is widely used in marine and industrial applications. Some of these applications are:
- Diesel Fuel
- Black Diesel
- Intermediate and Heavy Fuel Oils (IFO, HFO)

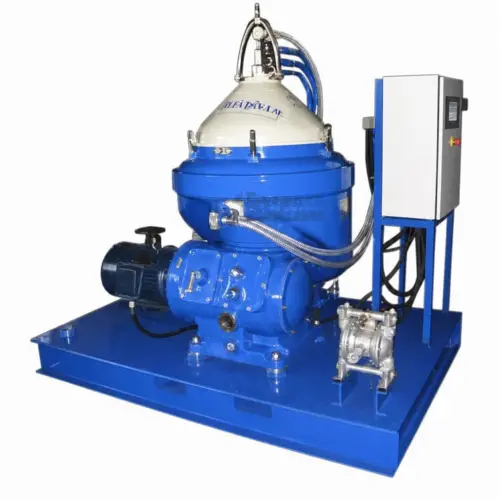

- Waste Oil
- Industrial Fluids & Machining Coolants
- Lubricating Oils.
Specifications
| Model Type | Alfa Laval WHPX 513 TGD 24-60 |
| Diesel Application Capacity | 16,400 L/h (72.21 US GPM) at 13 cSt and 40 °C |
| Rated Reference Capacity | 24,500 L/h (107.87 US GPM); source fluid not specified |
| Sludge Space | 3.87 Gallons |
| Motor HP: | 15 HP |
| Voltages: | 230 / 460 V, 3 phase |
The rated reference value is published without a process-fluid identity. It is not a diesel, water, wastewater, or other application capacity. Application capacity must stay attached to the exact fluid, viscosity, and centrifugation temperature.
Published WHPX 513 Capacity Data
| Fluid | Published capacity | Derived US GPM | Conditions |
|---|---|---|---|
| Marine diesel | 16,400 L/h | 72.21 | 13 cSt at 40 °C; centrifugation at 40 °C |
| HFO, 30 cSt at 50 °C | 15,200 L/h | 66.92 | Centrifugation at 70-98 °C |
| HFO, 40 cSt at 50 °C | 15,200 L/h | 66.92 | Centrifugation at 80-98 °C |
| HFO, 60 cSt at 50 °C | 11,500 L/h | 50.63 | Centrifugation at 80-98 °C |
| HFO, 100 cSt at 50 °C | 11,000 L/h | 48.43 | Centrifugation at 90-98 °C |
| HFO, 180 cSt at 50 °C | 7,600 L/h | 33.46 | Centrifugation at 90-98 °C |
| HFO, 380 cSt at 50 °C | 6,400 L/h | 28.18 | Centrifugation at 98 °C |
| HFO, 460 cSt at 50 °C | 5,400 L/h | 23.78 | Centrifugation at 98 °C |
| HFO, 600 cSt at 50 °C | 4,400 L/h | 19.37 | Centrifugation at 98 °C |
| Cross-head R&O lube oil | 7,400-8,600 L/h | 32.58-37.86 | Centrifugation at 80-90 °C |
| Cross-head detergent lube oil | 7,400-8,100 L/h | 32.58-35.66 | Centrifugation at 80-90 °C |
| Trunk detergent lube oil | 4,400-5,400 L/h | 19.37-23.78 | Centrifugation at 80-90 °C |
| Steam turbine lube oil | 15,900 L/h | 70.01 | Centrifugation at 60-70 °C |
The source cell for cross-head detergent lube oil lists its endpoints as 8,100-7,400 L/h; the table above normalizes them to ascending order while the machine-readable record preserves the original cell text. US GPM values are derived from L/h using L/h ÷ 227.124707 and rounded to two decimals. See the technical data methodology or the WHPX 513 machine-readable record.
If you have simple, routine questions: We have condensed our 40+ years of disc-stack centrifuge experience into 101 Frequently Asked Questions about Disc Stack Centrifuges!

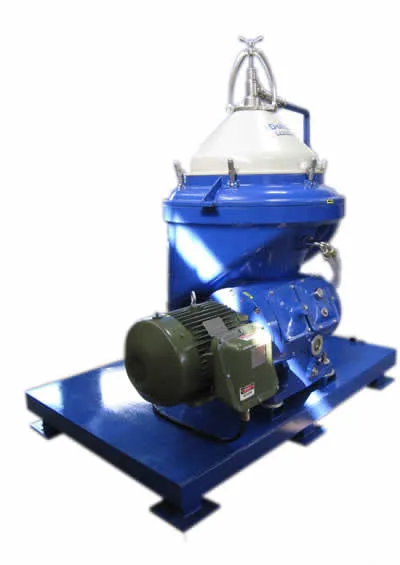

Alfa Laval FOPX 613 TFD Partial-Discharge Disc-Stack Centrifuge
The Alfa Laval FOPX 613 Centrifuge is a self-cleaning disc-stack centrifuge specially built for the three-phase separation of fuel oils, such as heavy fuel oil (HFO). The FO in FOPX stands for Fuel Oil.
With a 15 HP Motor, the FOPX 613 centrifuge has a bowl RPM of 4,100 and can process 30 GPM of ISO 380 cSt Heavy Fuel Oil.
Specifications
| Model Type | Alfa Laval FOPX 613 TGD 24-60 |
| Rated Capacity | 30 GPM on 380 cSt Heavy Fuel oil (HFO) |
| Sludge Space | 3.95 Gallons |
| Motor HP: | 15 HP |
| Voltages: | 230 / 460 V |
Alfa Laval MOPX 213 TGT Total-Discharge Disc-Stack Centrifuge
The Alfa Laval MOPX 213 Centrifuge is a self-cleaning disc-stack centrifuge designed for the three-phase separation of fuel oil, hydraulic oil, cutting oil, and other mineral oil and fuel.
With a 15 HP Motor, the MOPX 213 centrifuge has a bowl RPM of 4,150 and can process 40 GPM of Used Engine Oil at 180 F.
Specifications
| Model Type | Alfa Laval MOPX 213 TGT 20-60 |
| Dolphin Application Figure | 40 GPM on used engine oil at 180 °F |
| Sludge Space | 3.61 Gallons |
| Motor HP: | 15 HP |
| Voltages: | 230 / 460 V |
