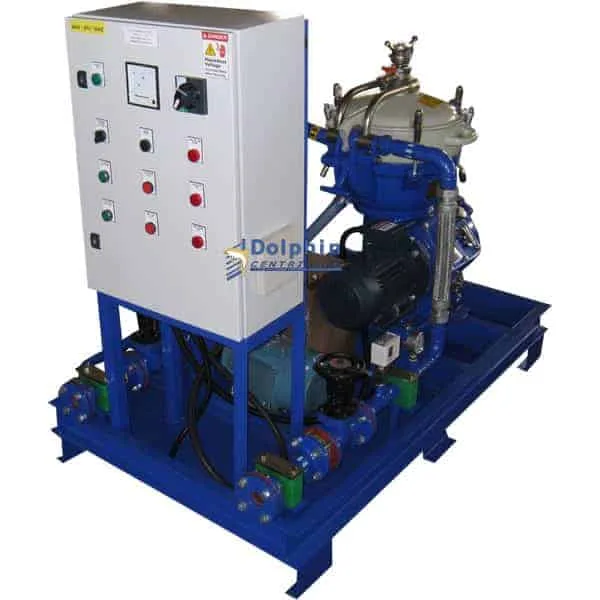

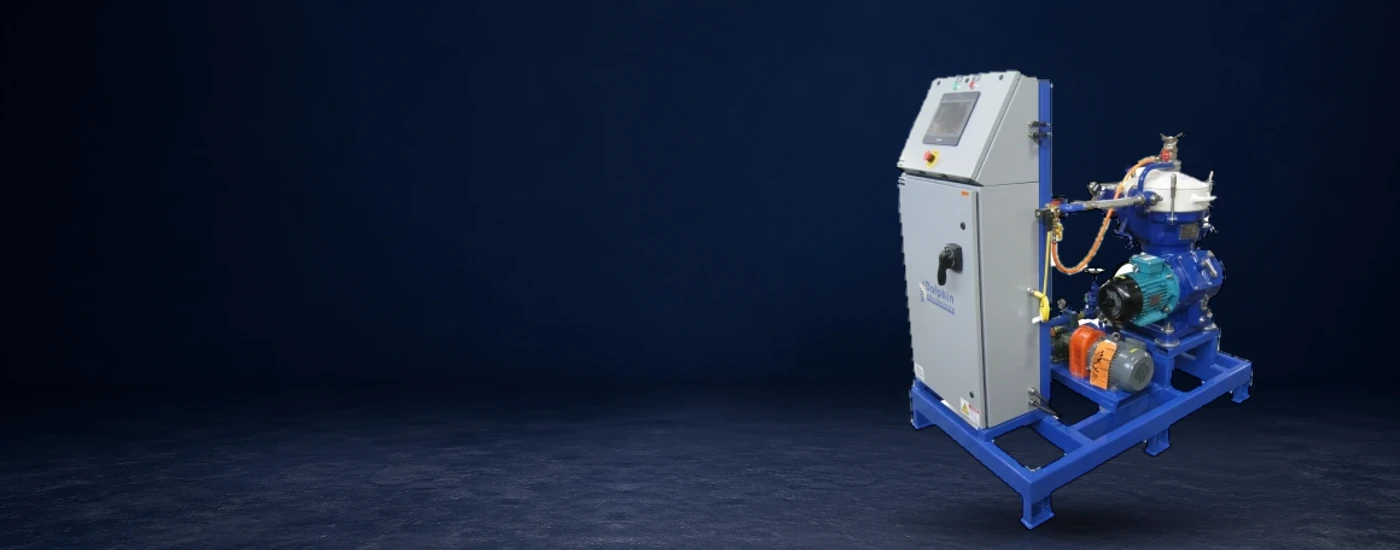

The DMB-013 is a Dolphin-engineered turnkey module featuring a remanufactured Alfa Laval MAB 204 manual-clean disc stack centrifuge, rebuilt, tested, and warrantied by Dolphin, the independent specialist in Alfa Laval centrifuges.
DMB-013 Specifications
| Parameter | Value |
|---|---|
| Base machine | Alfa Laval MAB 204 (remanufactured) |
| Separation type | Two-phase clarifier (liquid-liquid or liquid-solid) |
| Diesel throughput at 40°C and 13 cSt | 2,900 L/h (12.77 US GPM, derived) |
| Rated reference (source fluid unspecified) | 4,300 L/h (18.93 US GPM, derived) |
| Cleaning method | Manual (bowl disassembly required for solids removal) |
| Bowl construction | Carbon steel standard |
| Power supply | 460V / 3-phase / 60 Hz standard (other voltages available) |
Throughput figures are for typical fluids at listed conditions. Actual capacity varies with feed viscosity, temperature, density difference, and solids loading.
Dolphin Centrifuge is an independent remanufacturer and is not affiliated with Alfa Laval.
Need the complete datasheet?
We'll email the complete datasheet - usually within one business day.
Request the full spec sheet (PDF) ->DMB-013 Capacity by Application
| Application / Fluid | Published throughput (L/h and derived US GPM) |
|---|---|
| Rated reference (source fluid unspecified) | 4,300 L/h (18.93 US GPM, derived) |
| Gas oil at 40°C | 3,600 L/h (15.85 US GPM, derived) |
| Diesel fuel at 40°C and 13 cSt | 2,900 L/h (12.77 US GPM, derived) |
| R&O lube oil at 80–90°C | 1,300–1,500 L/h (5.72–6.60 US GPM, derived) |
| Detergent lube oil at 80–90°C | 1,100–1,300 L/h (4.84–5.72 US GPM, derived) |
| Trunk-piston detergent lube oil at 80–90°C | 800–900 L/h (3.52–3.96 US GPM, derived) |
| Engine lubricating oil at 80–90°C | 1,500 L/h (6.60 US GPM, derived) |
| Steam turbine oil at 60–70°C | 2,800 L/h (12.33 US GPM, derived) |
US GPM values are derived from the published L/h figures using 1 US GPM = 227.124707 L/h and rounded to two decimal places. See the authoritative technical-data registry and methodology for source basis and machine-readable records.
Is the DMB-013 right for your turbine or generator?
Our applications engineers can size the DMB-013 against your turbine HP rating and oil reservoir volume - and compare it against the DMB-007 and DMB-019 for best fit.
Key Applications
Mid-Range Turbine Lube Oil
Turbine generators in the 3,000–7,000 HP range with lube oil reservoirs of 1,000–5,000 gallons. Published MAB 204 throughput is 1,300–1,500 L/h (5.72–6.60 US GPM, derived) on R&O lube oil at 80–90°C and 2,800 L/h (12.33 US GPM, derived) on steam turbine oil at 60–70°C.
Lube Oil Centrifuge Details →Mid-Size Generator Diesel Polishing
Standby generators and prime power units with larger fuel tanks requiring continuous polishing. Published throughput is 2,900 L/h (12.77 US GPM, derived) on diesel at 40°C and 13 cSt and 3,600 L/h (15.85 US GPM, derived) on gas oil at 40°C, above the DMB-007 under the same conditions.
Industrial Hydraulic Systems
Large hydraulic systems on heavy presses, injection molding machines, and industrial equipment with oil reservoirs above 2,000 gallons. Hydraulic-oil throughput is application-specific and must be confirmed from viscosity, temperature, and separation duty.
Hydraulic Oil Centrifuge Details →Quench & Heat Treatment Oil
Heat treatment and hardening quench oil accumulates scale, carbon, and water over time. The DMB-013 clarifies quench oil, extending bath life and maintaining consistent quench characteristics for heat treaters and foundries. Quench-oil throughput is application-specific.
Frequently Asked Questions
What is the throughput of the DMB-013?
Published MAB 204 capacities are 2,900 L/h diesel at 40°C and 13 cSt (12.77 US GPM, derived), 3,600 L/h gas oil at 40°C (15.85 US GPM, derived), 1,300–1,500 L/h R&O lube oil at 80–90°C (5.72–6.60 US GPM, derived), and 2,800 L/h steam turbine oil at 60–70°C (12.33 US GPM, derived). The 4,300 L/h (18.93 US GPM, derived) rated reference has no source fluid specified.
When should I choose the DMB-013 over DMB-007 or DMB-019?
At the same published diesel condition of 40°C and 13 cSt, the DMB-013 base machine is rated at 2,900 L/h (12.77 US GPM, derived), between the DMB-007 at 1,500 L/h (6.60 US GPM, derived) and DMB-019 at 4,400 L/h (19.37 US GPM, derived). Its published R&O range at 80–90°C is 1,300–1,500 L/h (5.72–6.60 US GPM, derived).
What applications is the DMB-013 best suited for?
Mid-range turbine lube oil (3,000–7,000 HP), diesel polishing on mid-size generators, industrial hydraulic oil maintenance, and quench oil clarification where self-cleaning operation is not required. Hydraulic- and quench-oil throughput is application-specific.
What power supply does the DMB-013 require?
The DMB-013 uses 460V / 3-phase / 60 Hz as standard. Other voltages and frequencies are available for international installations. Contact Dolphin Centrifuge to confirm the right electrical configuration for your facility.
Can the DMB-013 replace multiple DMB-007 units?
At the published diesel condition of 40°C and 13 cSt, one DMB-013 is rated at 2,900 L/h (12.77 US GPM, derived), while each DMB-007 is rated at 1,500 L/h (6.60 US GPM, derived). A single DMB-013 can often replace two DMB-007 units with simpler maintenance and a smaller footprint. The DMPX-028 is a self-cleaning commercial class whose capacity depends on its exact Alfa Laval base machine. Contact us for a specific comparison.
