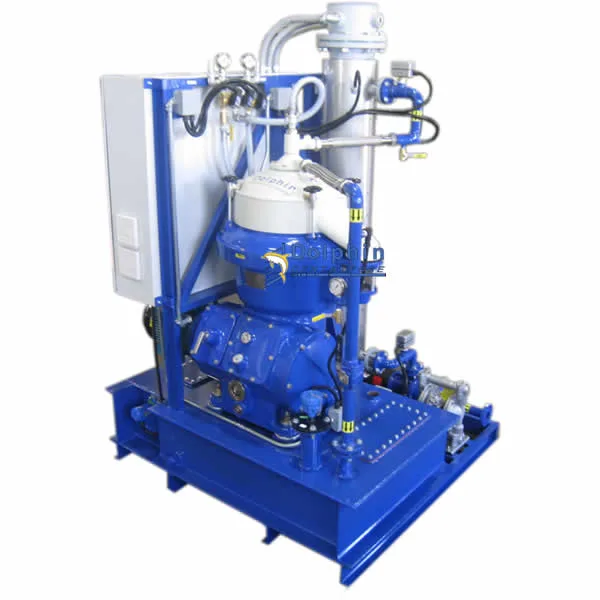

The DMPX-028 is a Dolphin-engineered turnkey module class supplied with a remanufactured Alfa Laval MOPX 207 or WHPX 407 centrifuge. These are distinct base machines with different published capacity records, so the selected base-machine identity stays attached to every flow value.
Dolphin is an independent remanufacturer and is not affiliated with Alfa Laval.
Technical Specifications
| Parameter | DMPX-028 Value |
|---|---|
| Base-machine options | Alfa Laval MOPX 207 or WHPX 407 (remanufactured) |
| Diesel capacity, MOPX 207 | 5,000 L/h (22.01 US GPM derived), 40°C, 13 cSt |
| Diesel capacity, WHPX 407 | 6,000 L/h (26.42 US GPM derived), 40°C, 13 cSt |
| WHPX 407 rated reference | 9,000 L/h (39.63 US GPM derived); source fluid unspecified, not a diesel or water capacity |
| Bowl Sludge Capacity | 1.03 gallons |
| Bowl Speed | 6,325–7,125 RPM |
| G-Force | 7,000–7,800 |
| Motor Power | 7.5–10 HP |
| Voltages | 230 / 460 V, 3-Phase |
| Net Weight (Bare Centrifuge) | ~1,800 lbs |
| Dimensions (Bare Centrifuge) | 30″ × 38″ × 43″ (H) |
| Separation Type | Three-phase (oil / water / solids) |
| Desludging | Automatic self-cleaning (hydraulic ejection) |
| Process | Continuous, unattended operation |
| DMPX Series Position | Mid-range (28 bowl equiv.) |
Need the complete datasheet?
We'll email the complete datasheet - usually within one business day.
Request the full spec sheet (PDF) ->Material of Construction
| Component | Material |
|---|---|
| Bowl Body & Bowl Hood | 316L Duplex Stainless Steel |
| Disc Stack | 316L Duplex Stainless Steel |
| Distributor / Disc Carrier | Marine Grade Bronze (316 SS special order) |
| Top Disc | Marine Grade Bronze (316 SS special order) |
| Collecting Covers | Silium (Aluminum Alloy) |
| Frame | Nodular Cast Iron |
Capacity by Fluid Type
| Exact base machine | Fluid and source conditions | Published capacity | Derived capacity |
|---|---|---|---|
| MOPX 207 | Gas oil at 40°C | 7,400 L/h | 32.58 US GPM |
| MOPX 207 | Diesel, 13 cSt at 40°C | 5,000 L/h | 22.01 US GPM |
| MOPX 207 | R&O / engine lube oil, centrifuged at 80–90°C | 2,600 L/h | 11.45 US GPM |
| MOPX 207 | Steam turbine lube oil, centrifuged at 60–70°C | 4,800 L/h | 21.13 US GPM |
| WHPX 407 | Rated reference; source fluid unspecified | 9,000 L/h | 39.63 US GPM |
| WHPX 407 | Marine diesel, 13 cSt at 40°C | 6,000 L/h | 26.42 US GPM |
| WHPX 407 | HFO 30 cSt at 50°C; centrifuged at 70–98°C | 5,600 L/h | 24.66 US GPM |
| WHPX 407 | HFO 40 cSt at 50°C; centrifuged at 80–98°C | 5,600 L/h | 24.66 US GPM |
| WHPX 407 | HFO 60 cSt at 50°C; centrifuged at 80–98°C | 4,200 L/h | 18.49 US GPM |
| WHPX 407 | HFO 100 cSt at 50°C; centrifuged at 90–98°C | 4,100 L/h | 18.05 US GPM |
| WHPX 407 | HFO 180 cSt at 50°C; centrifuged at 90–98°C | 2,800 L/h | 12.33 US GPM |
| WHPX 407 | HFO 380 cSt at 50°C; centrifuged at 98°C | 2,300 L/h | 10.13 US GPM |
| WHPX 407 | HFO 460 cSt at 50°C; centrifuged at 98°C | 2,000 L/h | 8.81 US GPM |
| WHPX 407 | HFO 600 cSt at 50°C; centrifuged at 98°C | 1,600 L/h | 7.04 US GPM |
| WHPX 407 | Cross-head R&O lube oil, centrifuged at 80–90°C | 2,700–3,200 L/h | 11.89–14.09 US GPM |
| WHPX 407 | Steam turbine lube oil, centrifuged at 60–70°C | 5,900 L/h | 25.98 US GPM |
Source L/h values are canonical. US GPM is derived as L/h ÷ 227.124707 and rounded to two decimals. HFO values above apply only to WHPX 407; none is transferred to MOPX 207. See the technical-data methodology and machine-readable DMPX-028 record.
Installation Requirements
- Electrical
- 460 V / 3-phase standard; 240 V / 3-phase available. Single-phase sites: customer can add a phase converter.
- Operating water
- 50 psig, clean potable filtered water - city water works best, soft water only.
- Compressed air
- 100 psig, ~15 cfm (portable compressor is fine). Primary use: AODD sludge pumps on self-cleaning machines.
- Feed
- Hotter separates better - WVO/thick/emulsified oils ideal ~180°F; HFO 200°F+. Pre-strain dirty feed to under 250 microns. A PLC-controlled feed pump is usually built into the skid; if customer-supplied, use positive-displacement/AODD pumps - avoid centrifugal pumps on emulsion-prone fluids.
- Drain
- Separated sludge via AODD pump, 1 to 1.5 inch outlet. Separated water: 1 to 1.5 inch pressurized, or 3 to 4 inch gravity drain.
- Foundation & environment
- Level concrete pad is usually sufficient; small units available on portable cart skids. Indoor install preferred. Outdoor installs must be in a climate-controlled/heated enclosure to prevent freezing - freezing is a safety hazard.
Key Applications
Waste Oil Reclamation
The DMPX-028 can process industrial used-oil streams including used motor oil, hydraulic oil, and gear oil, separating water and particulate solids. Waste-oil throughput is application-specific and must be sized from viscosity, temperature, density difference, solids loading, and the selected base machine. See our waste oil centrifuge application page for details.
Biodiesel Production
The DMPX-028 is used in biodiesel finishing to remove residual methanol, water, and glycerin after transesterification. The published diesel values are not biodiesel ratings; Dolphin sizes this duty from the actual feed and separation target.
HFO Purification
On the WHPX 407 base machine, published HFO 380 cSt capacity is 2,300 L/h (10.13 US GPM derived), with viscosity specified at 50°C and centrifugation at 98°C. The HFO curve belongs only to WHPX 407 and is not a MOPX 207 rating.
Hydraulic & Lube Oil Maintenance
Published lube-oil capacity is 2,600 L/h (11.45 US GPM derived) for MOPX 207 R&O / engine lube oil and 2,700–3,200 L/h (11.89–14.09 US GPM derived) for WHPX 407 cross-head R&O oil, both centrifuged at 80–90°C. Other lube-oil duties require application sizing.
Machining Coolant & Quench Oil
The DMPX-028 platform also handles machining coolant separation, quench oil clarification, and cutting oil recovery in metalworking operations - applications listed for both the Alfa Laval MOPX 207 and WHPX 407 base machines.
Ready to specify the DMPX-028?
Our applications engineers size every system to your fluid, flow rate, and contamination level - no guesswork. Get a quote or request sample testing.
Where the DMPX-028 Fits in the DMPX Series
The DMPX-028 sits at the middle of the Dolphin DMPX product range. For lighter-duty applications, the DMPX-010 and DMPX-014 offer more compact and lower-power variants. For higher-volume industrial applications, the DMPX-042 and DMPX-070 classes provide larger exact base-machine options. Flow comparisons must retain the base-machine identity, fluid, viscosity, and temperature rather than use one blended DMPX rating. All DMPX models use an automatic self-cleaning bowl design. Visit our disc stack centrifuge overview to compare all models, or contact us for application sizing.
Frequently Asked Questions
What is the throughput of the DMPX-028 centrifuge?
DMPX-028 is not one universal flow rating. The published diesel capacity is 5,000 L/h (22.01 US GPM derived) for MOPX 207 and 6,000 L/h (26.42 US GPM derived) for WHPX 407, both at 40°C and 13 cSt. WHPX 407 separately lists a 9,000 L/h (39.63 US GPM) rated reference whose source fluid is unspecified.
What applications is the DMPX-028 used for?
The DMPX-028 is used for biodiesel production finishing, industrial waste oil reclamation, HFO purification on medium marine vessels and power generators, hydraulic and lube oil maintenance, and light crude oil dewatering. Its 1.03-gallon sludge bowl supports continuous operation even with moderately contaminated oil streams.
How does the DMPX-028 compare to the DMPX-014?
Compare exact base machines. Published diesel values are 5,000 L/h (22.01 US GPM) for MOPX 207 and 6,000 L/h (26.42 US GPM) for WHPX 407, versus 3,300 L/h (14.53 US GPM) for MOPX 205 and 3,700 L/h (16.29 US GPM) for WHPX 405 in the DMPX-014 class. All are derived from source L/h at the same diesel conditions.
Can the DMPX-028 process HFO 380 cSt heavy fuel oil?
Only the WHPX 407 variant has a source-backed HFO curve. Its published HFO 380 cSt capacity is 2,300 L/h (10.13 US GPM derived), with viscosity specified at 50°C and centrifugation at 98°C. That value is not assigned to MOPX 207. Compare larger DMPX-042 options by exact WHPX base machine.
What is the sludge bowl capacity of the DMPX-028?
The DMPX-028 features a 1.03-gallon sludge bowl that ejects accumulated solids automatically via hydraulic pressure. This enables continuous 24/7 operation without cleaning shutdowns. For extremely high solids loading, the DMPX-042 (1.64-gallon bowl) may be more appropriate. Contact us for application-specific guidance.
